RING JOINT GASKETS

Ring Joint Gasket Type R oval

In the case of the oval ring joint gasket, the annular circular surface of the gasket presses against the trapezoidal groove of the flanges. The sealing surface pressure increases under- proportionally to the increase of the bolt force.

Ring Joint Gasket Type R Octagonal

The octagonal ring joint gasket acts as a spherical gasket, thereby creating a larger contact or sealing surface. The effect is larger than in the case of the oval ring joint gaskets. The sealing surface pressure increases proportionally to the increase of the bolt force.

Ring Joint Gasket Type BX

The gasket has a square cross-section with bevelled corners. The diameter of the ring joint gasket Type BX is slightly larger than that of the groove. It as such remains pre-compressed and thereby creates a high sealing value. The compensating bores correspond to the API. The sealing surface pressure increases proportionally to the increase of the bolt force

Ring Joint Gasket Type RX

The gasket has been designed to take advantage of the fluid pressure and to increase the sealing values. The higher the inner pressure, the more the side surfaces press the ring joint gasket Type RX into the groove surface. The sealing surface pressure increases proportionally to the increase of the bolt force.

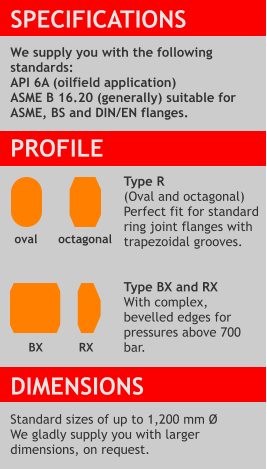

SPECIFICATIONS We supply you with the following standards: API 6A (oilfield application) ASME B 16.20 (generally) suitable for ASME, BS and DIN/EN flanges. PROFILE Type R (Oval and octagonal) Perfect fit for standard ring joint flanges with trapezoidal grooves. Type BX and RX With complex, bevelled edges for pressures above 700 bar. DIMENSIONS Standard sizes of up to 1,200 mm Ø We gladly supply you with larger dimensions, on request. octagonal RX oval BX
