RING JOINT GASKETS

Class (lbs) 10.000, 15.000 10.000, 15.000, 20.000 10.000, 15.000, 20.000 10.000, 15.000, 20.000 10.000, 15.000, 20.000 10.000, 15.000, 20.000 10.000 10.000, 15.000, 20.000 10.000, 15.000 10.000, 15.000 10.000 5.000 5.000 5000, 10.000 5.000 10.000 5.000 10.000 2.000 3.000 10.000 –- –- –- 2.000, 3.000
NPS (inches) 1 11/16 1 13/16 2 1/16 2 9/16 3 1/16 4 1/16 5 1/8 7 1/16 9 11 13 5/8 13 5/8 16 3/4 16 3/4 18 3/4 18 3/4 21 1/4 21 1/4 26 3/4 26 3/4 5 1/8 9 11 13 5/8 30

Type BX

Norm: API 6 A
Flanges: API 6 BX
Pressure: Class 2.000 - 20.000
Ring-Nr. BX 150 BX 151 BX 152 BX 153 BX 154 BX 155 BX 169 BX 156 BX 157 BX 158 BX 159 BX 160 BX 161 BX 162 BX 163 BX 164 BX 165 BX 166 BX 167 BX 168 BX 169 BX 170 BX 171 BX 172 BX 303
A (mm) 72,19 76,40 84,68 100,94 116,84 147,96 173,52 237,92 294,46 352,04 426,72 402,59 491,41 475,49 556,16 570,56 624,71 640,03 759,36 765,25 173,52 218,03 267,44 333,07 852,75
b (mm) 9,30 9,63 10,24 11,38 12,40 14,22 12,93 18,62 20,98 23,14 25,70 13,74 16,21 14,22 17,37 24,59 18,49 26,14 13,11 16,05 12,93 14,22 14,22 14,22 16,97
h (mm) 9,30 9,63 10,24 11,38 12,40 14,22 15,84 18,62 20,98 23,14 25,70 23,83 28,07 14,22 30,10 30,10 32,03 32,03 35,86 35,86 15,84 14,22 14,22 14,22 37,95
BX 150 to BX 172
do 1,60 1,60 1,60 1,60 1,60 1,60 1,60 3,20 3,20 3,20 3,20 3,20 3,20 1,60 3,20 3,20 3,20 3,20 1,60 1,60 1,60 1,60 1,60 1,60 1,60
A b c h b c h
c (mm) 7,98 8,26 8,79 9,78 10,64 12,22 10,69 15,98 18,01 19,86 22,07 10,36 12,24 12,22 13,11 20,32 13,97 21,62 8,03 10,97 –- –- –- –- –-

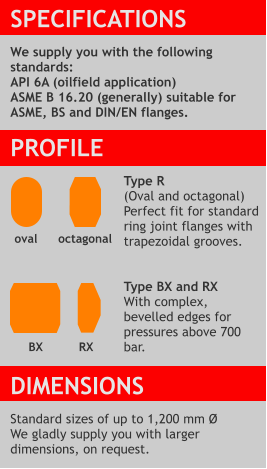

SPECIFICATIONS We supply you with the following standards: API 6A (oilfield application) ASME B 16.20 (generally) suitable for ASME, BS and DIN/EN flanges. PROFILE Type R (Oval and octagonal) Perfect fit for standard ring joint flanges with trapezoidal grooves. Type BX and RX With complex, bevelled edges for pressures above 700 bar. DIMENSIONS Standard sizes of up to 1,200 mm Ø We gladly supply you with larger dimensions, on request. octagonal RX oval BX
